In Stock

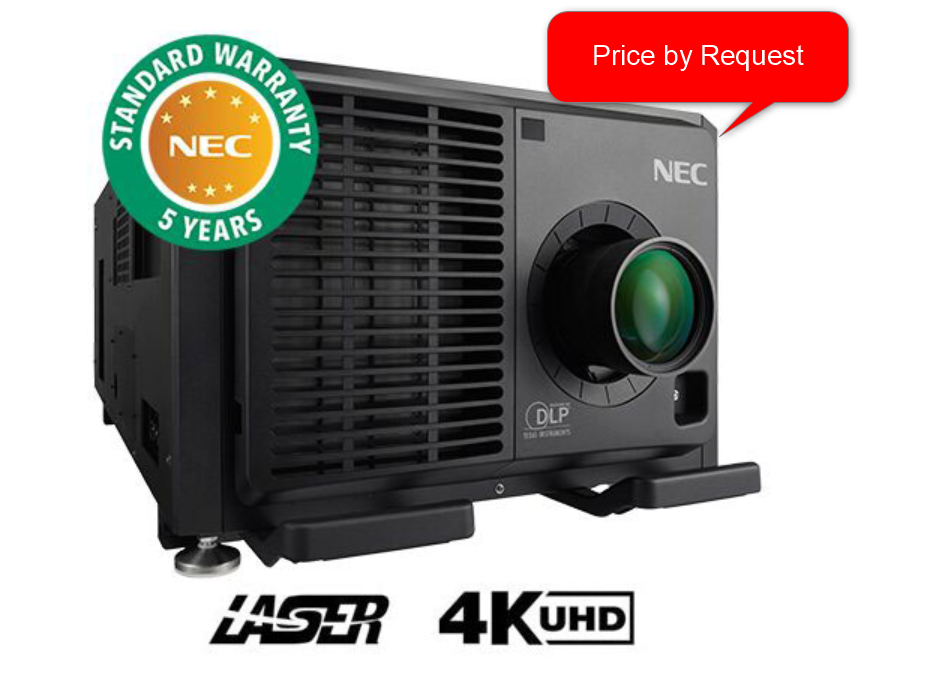

NEC’s PH3501QL is a 40,000 Center Lumens (35,000 ANSI) 3-Chip DLP RB laser projector with advanced professional installation features for higher education, house of worship, rental & staging, museum and corporate users. Creates stunning real life video images using proprietary Digital Cinema Quality Video processing. extreme brightness and resolution also offer a seamless alternative to video walls. With its multitude of digital inputs, (Dual HDMI (V2.0) w/ HDCP (V1.4/2.2), Dual DisplayPort w/ HDCP (V.1.4), HDBaseT w/ HDCP (V1.4/2.2), Quad 3G-SDI and an OPS slot) connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), Built-in edge blending, stacking and geometric correction help support projection mapping when single or multiple projectors are required. The newly developed sealed optical engine creates a filter/maintenance free projector.



Light Out 35,000 ANSI (3 CHIP DLP)
Resolution 4096 X 2160 (4K UHD)
Contrast Ratio 30,000 : 1 (Dynamic contrast)
Lamp Life 20000 hrs (Light source)
Weight 169.0 KG
Terminals  HDMI (2)
    HDBaseT (1)
RJ45  (1)





  • 4K (4096 x 2160) native resolution for unsurpassed image detail for demanding graphics design and CAD/CAM applications
  • Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. 4K60P processing supported on all digital inputs from HDR10, BT.2020 signals using “Ultra HD Blu-ray” and “4K TV broadcasting”
  • The latest RB laser light source produces extremely bright, dynamic images — even in high ambient lighting conditions
  • Stable brightness (constant brightness) preserves image integrity over a longer time period
  • High performance lenses with +/-50% vertical lens shift providing for unprecedented installation flexibility
  • Super Dust protection for artifact free images and no loss of brightness over time within the most demanding integration applications such as higher education, House of Worship and corporate
  • Seamlessly blend multiple images with integrated edge blending capabilities
  • 40,000-lumen brightness enhances images for most applications
  • ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.
  • Additional Features

    • 4K Ready
    • Powered Lenses
    • Manual Keystone Correction
    • 3D Stereo
    • Geometric Correction
    • Quick power on
    • ECO Mode Technology
    • DiCom Simulation
    • Edge Blending
    • Stacking
    • Virtual Remote
    • NaViSet Administrator 2
    • Quick power-off
    • Picture-in-Picture
    • Advanced AccuBlend
    • AutoSense


Warranty Length :2 Years.

Light source warranty  :  1 year or 1000 hours, whichever comes first.

In-Warranty Service
If your NEC product is still under warranty, you have the following options:

  • Service DOA
  • Service Repair


NP-PH3501QL Spec Brochure
